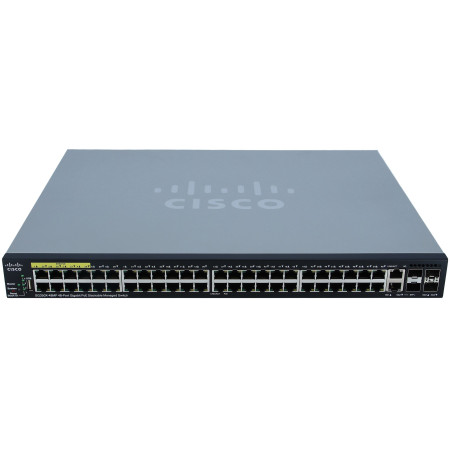

Switch L3 PoE Cisco SG350X-48 con 48 porte Gigabit Ethernet (GbE), 2 x 10 G combinate + 2 x SFP+,8 PoE (SG350X-48-K9-EU)

SG350X-48 Specification
Feature
Description

Capacity in Mpps (64-byte packets)
130.94

Switching capacity (Gbps)
176

Total system ports
48x 1G + 4x 10G

Network ports
48x 1G

Uplink ports
2x 10G copper/SFP+ combo
+ 2x SFP+

Packet buffer
3 MB

Unit dimensions (W x H x D)
440 x 44 x 257 mm (17.3 x 1.73 x 10.12 in)

IPv6

IPv6 host mode IPv6 over Ethernet dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discovery

Duplicate Address Detection (DAD) ICMP v6

IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel support

USGv6 and IPv6 Gold logo certified

IPv6 QoS

Prioritize IPv6 packets in hardware

IPv6 ACL

Drop or rate-limit IPv6 packets in hardware

IPv6 First Hop Security

RA guard

ND inspection

DHCP v6 guard

Neighbor binding table (snooping and static entries)

Neighbor binding integrity check

Multicast Listener Discovery (MLD v1/2) snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 applications

Web/SSL, Telnet Server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial FTP (TFTP), SNMP, RADIUS, Syslog, DNS client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS

General

Jumbo frames

Frame sizes up to 9000 bytes. The default MTU is 2000

MAC table

32,000 addresses on SG350XG and SX350X models

16,000 addresses on all other models

Discovery

Bonjour

The switch advertises itself using the Bonjour protocol

LLDP (802.1ab) with LLDP-MED extensions

Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones

Cisco Discovery Protocol

The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol

Console port

Cisco standard RJ-45 console port

OOB management port

Dedicated Gigabit Ethernet management port for Out-Of-Band (OOB) management on SG350XG and SX350X models

USB slot

USB Type A slot on the front panel of the switch for easy file and image management

Buttons

Reset button

Cabling type

UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+

LEDs

System, master, stack ID, link/speed per port

Flash

256 MB

CPU

1.3-GHz and 800-MHz (dual-core) ARM for SG350XG and SX350X models

800-MHz ARM for all other models

CPU memory

512 MB

Environmental

Power

100 to 240V 47 to 63 Hz, internal, universal

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

SG350X-12PMV, SG350X-24, SG350X-24P, SG350X-24MP, SG350X-24PD, SG350X-24PV, SG350X-48, SG350X-48P, SG350X-48MP, SG350X-48PV, SG350XG-2F10, SG350XG-24F, SG350XG-24T, SG350XG-48T, SX350X-08, SX350X-12, SX350X-24F, SX350X-24, SX350X-52

32° to 122°F (0° to 50°C)

SG350X-8PMD

32° to 113°F (0° to 45°C)

Storage temperature

-4° to 158°F (-20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

Warranty

Limited lifetime with next-business-day advance replacement (where available, otherwise same day shipping)
