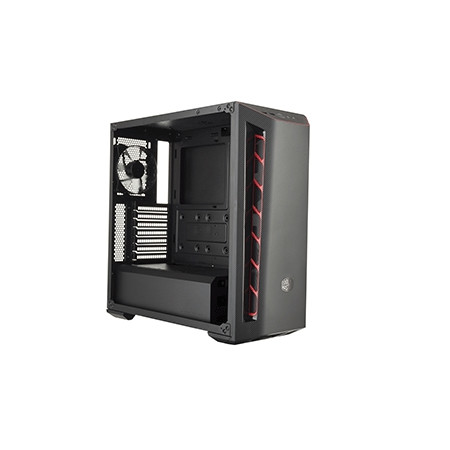

MIDI TOWER COOLER MASTER MASTERBOX MB510L RED 7SLOT 2X3.5 4X2.5 2XUSB3.0 NO ALIM WINDOWED

Motorsports and supercars inspired the front panel of the MB510L. Luckily, the case doesn’t share a supercar’s price.

The aggressive ventilation on the front panel allows the system to breathe easy while the ventilation on the top panel adds additional thermal support.
Graphics cards might be getting larger and wider over time, but with 400mm of accommodating space, build worry-free with the MB510L.
The chassis and PSU shroud are powder-coated in black to help compliment your build while the edge-to-edge transparent side panel shows it off.

Features:
- Carbon Texture - Racing and motorsports act as an inspiration for the carbon texture design.
- Performance Intake - Large intakes on each side of the front panel pay tribute to high performance cars.
- Trim Color - Choose between red, white, or blue trim to compliment the intakes.
- Support for a total of 6 fans & water cooling - Six 120mm fans and front and rear water cooling support ensure that you don't have to compromise on performance.
- Graphics card support up to 400mm - You won't ever have to worry about the fit of your graphics card with support for even the largest, widest cards.
- Edge to Edge Transparent Side Panel - Showcase your build through the transparent side panel.

Product Number�
MCB-B510L-KANN-S00(Red)

Product Name
MasterBox MB510L

Available Color
Red

Materials
Steel, Plastic

Dimensions (L x W x H)�
496 x 217 x 468 mm

Motherboard Support
ATX (up to 272mm width), Micro-ATX, Mini-ITX

Expansion Slots
7

Drive Bays
5.25" No
Combo 3.5" / 2.5" 2(Max.2)
SSD 4(Max.6)

I/O Port
USB 3.0 x 2
Audio in / out

Pre-installed Fan(s)
Rear 120mm x 1

Fan Support
Top 120mm x 2 / 140mm x2
Front 120mm x 3 / 140mm x 2
Rear 120mm x 1

Liquid Cooling Support
Front 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance)
Top 120 / 240 mm
Rear 120mm

Clearances
CPU Cooler 165mm / 6.49"
PSU 180mm / 7.08"
GPU 400mm / 15.74”

Cable Routing
Behind 19mm / 0,74”
Motherboard Tray

Dust Filters
Front, bottom

Power Supply Support
Bottom mount, ATX

Carton dimension (L x W x H)
52.3 x 27.6 x 56.8 cm

Color of Trim
Red

Product Number
MCB-B510L-KANN-S00

EAN Code
4719512072196

UPC Code
884102044694
